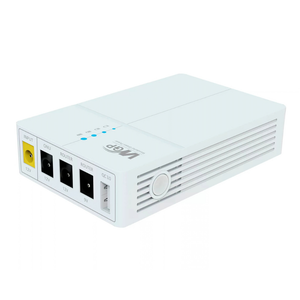

Charging station WGP UPS RCI 302 DC-female input
The WGP UPS 302 uninterruptible power supply is designed to ensure long-term autonomous operation of equipment with 12V, 9V or 5V power supply. It is recommended to reserve power for Wifi routers, IP phones, video surveillance cameras, Ethernet switches, xPON ONU, cash registers, intercoms and doorphones.
The absence of an additional converter ensures maximum efficiency. The Mini-UPS will operate in stand-alone mode for up to 8 hours, depending on the power consumption of the connected devices (power consumption parameters are indicated in the device’s technical data sheet).
Connecting the device does not require special technical skills and knowledge. The Mini-UPS is connected to the gap between the native power supply and the device being backed up. It is possible to connect multiple devices to one Mini-UPS.
Main characteristics
Input: 12V3A
Output voltage: USB 5V/9V(QC3.0) DC 5.5 12V/2A; 12V/2A; 9V/1A
Maximum output power: 27W
Capacity: 49.95WH
Battery: 21700 lithium-ion cells 3pcs 4500mAh

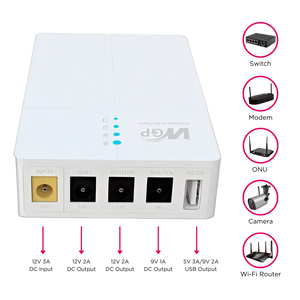

Output connectors: DC 5.5*2.5 mm – 3pcs USB -1pc
Input connector: DC 5.5*2.1mm

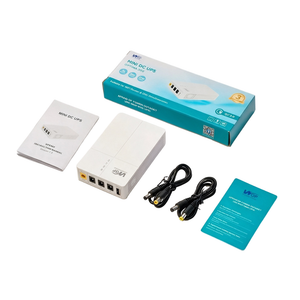

Included:
- Mini DC UPS – 1 pc.
- DC-DC cables 5.5×2.1 – 2 pcs.
- User manual – 1 pc.
